• 3-Axis Servo-Controlled Cement Path Heel-Seat and Side Lasting Machine
EF-526MAX

3-Axis Servo-Controlled Cement Path Heel-Seat and Side Lasting Machine


OUTSTANDING FEATURES:
Computerized Servo-Controlled Cement Path:
Cement path precisely follows insole curvature of any shapes, providing higher lasting quality and less cement residue.
Cement Path Automatic Grading:
No manual cement path adjustments needed for different shoe sizes, saving time and always with exact paths.
Left/Right Cement Path Auto-Mirroring:
With automatic mirror calculation, no need to set right shoe cement path after setting the left shoe.
Quick Initial Cement Path Setting:
Setting the initial cement path for a new shoe last is quick and easy. Each different last requires only one setting.
Cement Path Storage in Memory:
Able to store cement paths for different shoes, no need of manual adjustments when changing shoe styles.
Servo-Controlled Cement Nozzle Forward Movement:
Servo-controlled forward movement provides accurate and stable cement spreading speed, not affected by oil temperature as hydraulic-controlled system.
Inventor Cement Feeding Motor:
Cement motor changes feeding speed automatically to compensate the increase/decrease of nozzle forward speed and reach constant cement amount.
3-axis Servo-Controlled Cement Path:
All 3 axes for cement path are servo-controlled, both static and dynamic movement ….
Automatic Side-lasting Finger Height Adjustment:
Electrical finger height adjustment allows for different heights on inner and outer waist areas, and automatic left/right shoe switch.
Automatic Side-lasting Finger Inclination Adjustment:
Unique electrical inclination adjustment system, hands can feel the inclination by touching and moving together with finger set.
Left/Right Pincer Position Auto-Switching:
Electrical pincer position adjustment, automatic switching between left and right shoes to pull upper correctly.
Large Touch Screen Interface:
User-friendly multi-language and graphic display, enhancing readability and operation easiness.
Portable File Storage Device:
Using USB port to copy shoe pattern files from one machine to another, no need of repetitive settings.
Computerized Servo Motion Control:
PLC and servo controller combined to give machine with precise working sequence.
Pincer Inward Pulling:
Extra pincer inward pulling after grasping shoe upper, providing tight fit against shoe last.
Automatic Error Warning:
Warnings on various possible errors, providing quick repair solutions
Cement Length Laser Marking:
With laser marking as reference, setting cement length by turning the knob is easy and intuitive.

Machine Size (LxWxH)

1600×1400×1900 mm

Packing Size(LxWxH)

1760×1520×2110 mm

Capacity(8Hr)

1500  Pairs

Hydraulic Oil

80 Liters

N.W.

1160 kgs

G.W.

1350 kgs

Power

3 KW

P.S. The above specifications and designs are subject to change without pre-notice.

Related Products

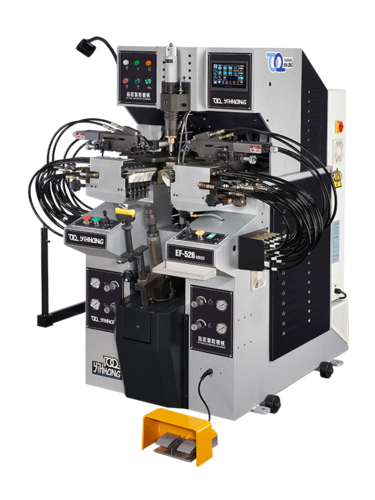

Fully Automatic Heel Seat & Side Lasting Machine

Model : EF-526A/B

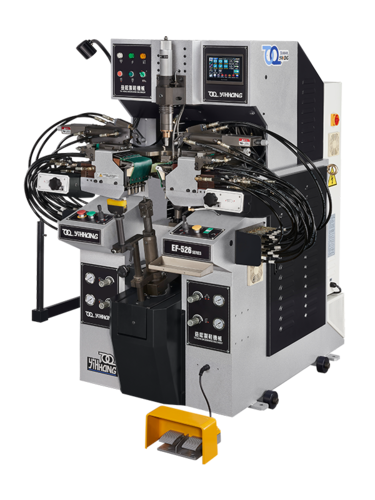

Automatic Heel-Seat and Side Lasting Machine for Lady Shoes
