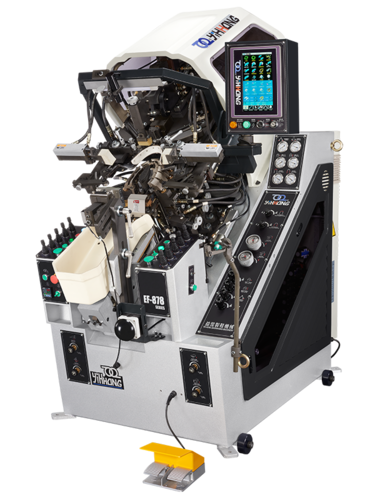

• Computerized Programmable Toe-Lasting Machine

Computerized Programmable Toe-Lasting Machine


  • Pincer Share Auto-Arrangement:
    ♦Toe-Pincer Width Adjustment:From pointed-toe to rounded-toe shoes, toe-pincer width can be adjusted automatically.
    ♦Toe-Pincer Left/Right Swing:Automatically swings to left or right, easily fits any asymmetric-toe shoes.
    Toe-Size Adjustment:2nd Pincers rotate automatically to fit shoes with any toe sizes.
    ♦Shoe-Size Adjustment:Pincers move in left and right groups to fit different shoe sizes.
    Left/Right Shoe Auto-Switching:Pincers move automatically to right shoe formation after finishing left shoe lasting cycle.
    Shoe Pattern Programming and Storage:Up to 120 shoe patterns can be stored in memory for later retrieval.
  • Quick-Change Mechanisms:
    Quick-Change Pincers:Pincers can be changed easily without any tools.
    Quick-Change Wipers:Wipers can be removed and replaced simply by fingers.
    Quick-Change Toe Band:Quick toe-band removal system reduces lead time for shoe pattern changes.
    Quick-Change Support and Injector:Last support and injector can be changed quickly to fit different shoe bottoms.
  • Special Functions and Devices:
    7" Full Color Touch Screen:Graphic/text double display allows user to understand and operate easily.
    Multiple Language Screen Display:Available languages include Chinese, English, Turkish, Spanish, Vietnamese, Indonesian and Russian.
    Head Position Electrical Control:Head position can be moved forwards/backwards electrically, its position can be stored in memory.
    ♦Last Support Height Indicators:Clearly indicate last support heights for accurate adjustments.
    Pincer Slipping System:Allow upper to slip between pincers jaws when last support goes up.
    ♦Independent Pincer Flash-Open:Auto/manual adjustments of pincer flash-open to reduce upper tension.
    ♦Last Support Double Rise:Last support rises in 2 different speeds to reduce possibility of upper breaking.
    Last Support Left/Right Swing:Last support swings left/right to provide stable support for left/right shoe.
    ♦Quick-Access Hydraulic Controls:Necessary speed/pressure regulators are well located for easy access.
    ♦Auto Error Warning/Detection:Warning indicator blinks and possible causes shown graphically on screen for quick maintenance.

Machine Size (LxWxH)

1750x1010x1950 mm

Packing Size(LxWxH)

1880x1060x2140 mm


2000 Pairs

Hydraulic Oil

130 Liters


1195 kgs


1355 kgs


3 KW

P.S. The above specifications and designs are subject to change without pre-notice.

Related Products

Fully Automatic Claw Type Hydraulic Toe-Lasting Machine

Model : EF-868-2B

Computerized Fully Automatic Toe-Lasting Machine

Model : EF-878A+

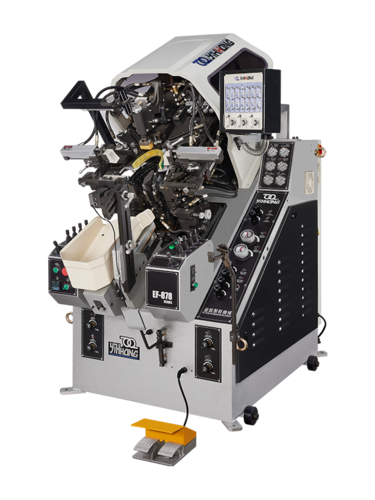

Fully Automatic Claw Type Hydrulic Toe-Lasting Machine

Model : EF-878AD

Computerized Automatic Toe-Lasting Machine

Model : EF-868-3A/3B

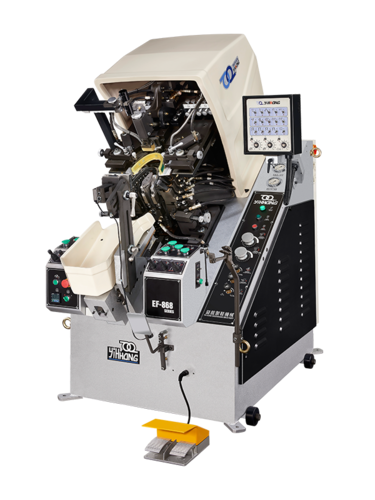

PCB Type Automatic Toe-Lasting Machine
